ABCS™

Advanced Battle Command System™

The easiest and simplest solution to take multiple image inputs from various sources and display them in whatever manner or configuration desired. The system is lightweight and easy to setup, configure, use, expand and transport.

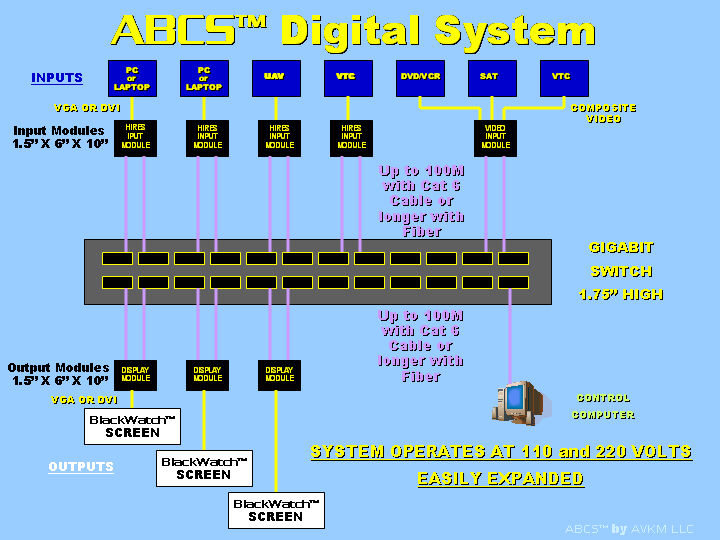

ABCS™ with BlackWatch™ System block diagram

ABCS™ Features

No heavy cumbersome analog central chassis
Easy to train and operate - digital operation and Cat6 Cable
Easy to maintain and transport - minimize components
Any input can be shown on one display or every display
Any input can be shown across all displays
Analog inputs (VGA, Audio, etc) converted to digital
Internal digital processing allows system outputs via analog or digital standards

ABCS™ System Components:

ABCS™ Software

Using a touch panel or personal computer, the user can intuitively manipulate audio inputs/outputs and all display images; video, computer or Video Telepresence on the virtual display area, KnowledgeWall™.

ABCS™ Wall Controller

The ABCS™ wall controller displays up to 28 windows simultaneously on one display or one window across all displays. The standard ABCS™ system is designed to accept 10 computer/ Video Telepresence and 4 video inputs displaying on 3 outputs. This is easily expanded by adding more input and output modules. The wiring of the ABCS™ system is comprised of lightweight standard CAT6 cable to interface all input and output display signals.

Audio Processor

The ABCS™ system has multiple audio processors available, from simple audio reinforcement (volume control) to integrated noise and echo cancellation with matrix switching/ mixing capability. The system interfaces with any brand video teleconference system. The advanced audio processor has eight logic controlled microphones, each with its own digital signal processor for echo cancellation and and adjustment. The system can also accommodate four line level inputs and eight line level outputs. Two powered speakers are included.

BlackWatch™ Large Scale Displays

The ABCS™ system supports multiple configurations of Large Scale Displays 60" to 100" wide, able to accommodate all major aspect ratios. The lightweight, foldable and easy to set up black aluminum screen frame Large Scale Displays with cantilevered floating mount projectors are BlackWatch™ LSDs. Options to integrate cameras to the screens for video telepresence are available.

A single screen ABCS with Blackwatch system.

AVKMLLC NEWS

AVKMLLC delivers ABCS with Blackwatch System to Ft. Sill Fires Battle Lab.
AVKMLLC attends Modern Day Marine in Quantico.
ABCS featured at Best Warrior Competition at Ft. Lee, VA.
ABCS featured at SOFEX at Ft. Bragg, NC.
ABCS featured at the Soldier Equipment & Technology Expo

Why Choose An AVKMLLC ABCS System?

      -lightweight
      -quick set up
      -virtually unlimited inputs and outputs
      -extremely cost effective
      -expandable to multiple displays
      -flexible
      -transportable
      -durable
      -maintainable
      -any input on one or many displays
      -any input across all displays

                     learn more>>

Technical Specifications

ABCS Computer Input Module: One input per module Captures up to 2048x1200 resolution DVI-I, analog VGA or digital DVI signal Supports PAL and NTSC Loops out same signal as input 9.25" x 6.435" x 1.67", 2.5 lbs 100-240 VAC, 50-60 Hz, 29 W	ABCS Video Input Module: Four inputs per module Handles composite and S-video Supports PAL and NTSC encoding formats Supports up to 8 windows Four BNC inputs 9.25" x 6.435" x 1.67", 2.5 lbs 100-240 VAC, 50-60 Hz, 42 W	ABCS Output Display Module: One output per display Up to 2048 x 1200 resolution DVI-I, analog VGA or digital DVI signal 9.25" x 6.435" x 1.67", 2.5 lbs 100-240 VAC, 50-60 Hz, 35 W
BlackWatch Large Scale Display: Standard 60" x 45" displays 10 KM at 1:100,000 map scale LSDs are available any size or shape & use same case 1024 x 768 to 1920 x 1200 resolution	ABCS Gigabit Switch: 48 port switch 15.625" x 17.375" x 1.75", 12 lbs. 100-240 VAC, 50-60 Hz, 131 W	ABCS Control Computer: Ethernet Gigabit Port Jumbo Frame Capability XP or Windows 7 Operating System

Testimonials

"The ABCS system is truly next generation!"

"Everything I have ever wanted to change on the TMSS screen you have implemented on the Blackwatch screen."

"The Blackwatch projector mount should replace all existing TMSS projector mounts in the field."
